Cloud Computing



Nuvoton’s family of highly integrated embedded controller (EC) devices extends Nuvoton’s rich portfolio of microcontrollers into the area of application-specific, standard embedded controllers, optimized for portable applications such as tablets, two-in-one convertible and detachable notebooks, and traditional form factor notebooks. The same embedded controllers also fit perfectly into the dock side of current two-in-one systems requiring this kind of control function set.

With the embedded high-performance RISC core, integrated advanced functions, and wide variety of memory configurations and form factors, Nuvoton’s EC family fully covers the current broad range of portable applications and provides best-in-class, complete EC functionality. The EC family offers devices with varying sets of integrated functions and host system interfaces to best meet the requirements of current and future mobile systems.

EC for Portable Applications

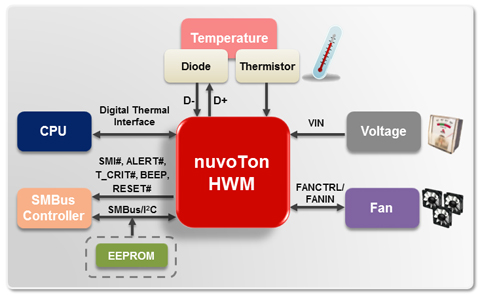

Hardware Monitors

Nuvoton's Hardware Monitoring IC solutions continue to be popular customer solutions and as the system first line of defense against hardware faults. This family of devices integrates the most important and up-to-date protection functions including voltage, temperature, and fan speed monitoring. We offer the industry’s most complete suite of solutions for Cloud Computing, desktop, notebooks, servers, VGA cards, projectors, and game console applications.

Desktop / Server Series

NB and Networking / Storage Series

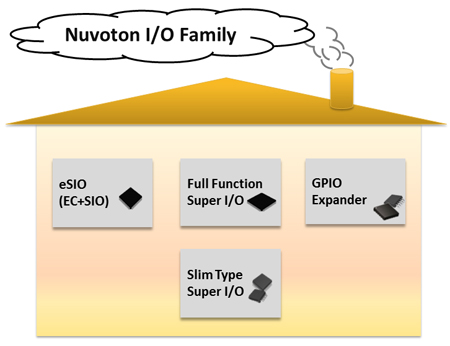

Nuvoton is an industry leading supplier of I/O device with many years of experience in the Computer Industry. Nuvoton`s portfolio of devices includes the eSIO series, Super I/O series and General Purpose I/O series.

eSIO Series

General Purpose I/O Series

Super I/O Series


Nuvoton’s security solutions, consisting of a range of Trusted Platform Module (TPM) devices, are single-chip solutions based on Nuvoton’s SafeKeeper™ technology.

Nuvoton’s TPM devices provide a complete solution for platform security for a wide range of computing and peripheral applications, including servers, PC clients and various peripheral appliances.

Trusted Platform Module (TPM)

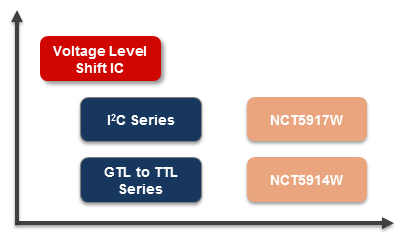

Voltage Level Shifters

Nuvoton voltage level shifter family includes I²C series and GTL to TTL series.

This family provides the ability of voltage level shifting at high speed. They are widely used in the industry.

GTL to TTL Series

I2C Series


The NPCM7xxR iBMC family of products is the third generation of Nuvoton’s BMC products that combine Baseboard Management Controller (BMC), VGA-compatible Graphics core with PCI-Express (PCIe) Gen-2 interface, Virtual Media and Keyboard, Video and Mouse Redirection (KVMR). It supports a variety of chipsets and integrates SuperI/O functionality sufficient for a legacy-reduced server.

The NPCM7xxR family offers four pin-compatible products.

  • The NPCM750R and NPCM710R are targeted for Enterprise segment.
  • The NPCM730R and NPCM705R are optimized for Data Center and Hyperscale applications.

To support upcoming BMC computing and processing requirements, the NPCM7xxR offers a scalable computing subsystem ranging from a single-core to a dual-core ARM® Cortex A9, at 800 MHz with L1/L2 caches.

The NPCM7xxR family supports a “Secure BMC” mode of operation. In this mode, the BMC is the Root of Trust and it executes only an authenticated software that was cryptographically signed. In case of a security breach, the BMC will halt operation.

To increase system performance and for real time applications handling, the NPCM7xxR integrates a dedicated 200 MHz 32-bit RISC Co-Processor.

For Server and NVMexpress manageability applications, the NPCM7xxR implements an MCTP node over PCIe, which enables the BMC to receive and transmit MCTP packets over the PCIe fabric.

The NPCM7xxR PCIe Root-Complex (RC) function can be used for control of devices in Storage and Network platforms.

Nuvoton provides software manageability developers with Linux SDK, Co-Processor SDK and production utilities. NPCM7xxR is supported by OpenBMC.
