Qorvo – Advantages of Cascode SiC FETs

Vorteile von Kaskoden SiC FETs von Qorvo

Wide Band Gap Devices like Silicon Carbide (SiC) Field Effect Transistors (FETs) are more and more considered for High-Voltage and High Power applications because of the capability of higher switching frequencies and thus better efficiency than common Silicon FETs.

In almost every attribute SiC MOSFETs are better than Silicon MOSFETs. One part where they are worse is the MOS channel resistance, which can largely contribute to die size and is much bigger than in Si MOSFETs. Most vendors for SiC FETs offer just such “normal” SiC MOSFETs, with this disadvantage.






JFETs instead don’t have this channel resistance and can therefore offer much smaller on-resistance for same die size or smaller die size for same on-resistance. One negative point of JFETs is that they are normally-on devices. In most applications this is not wanted. To overcome this negative point a cascode consisting of a SiC JFET and Si MOSFET can be used. This results in a normally-off device with all of the advantages of a SiC JFET.

Qorvo’s SiC FETs offer such SiC JFET + Si MOSFET cascode in a single package.



Advantages of Qorvo’s SiC FETs


Due to the cascode configuration Qorvo SiC FETs offer many advantages.

For the same chip size Qorvo SiC JFETs offer much better RDS,On compared to standard SiC MOSFETs both at 650V and 1200V. In fact, Qorvo offers lowest RDS,ON for SiC devices in the industry which leads to lowest conduction losses.



For the same RDS,ON on the other hand they enable smaller chip size which leads more chips per Wafer and lower parasitic device capacitances. Lower parasitic capacitances however lead to low Coss losses and fast ZVS voltage transitions in soft switching applications.

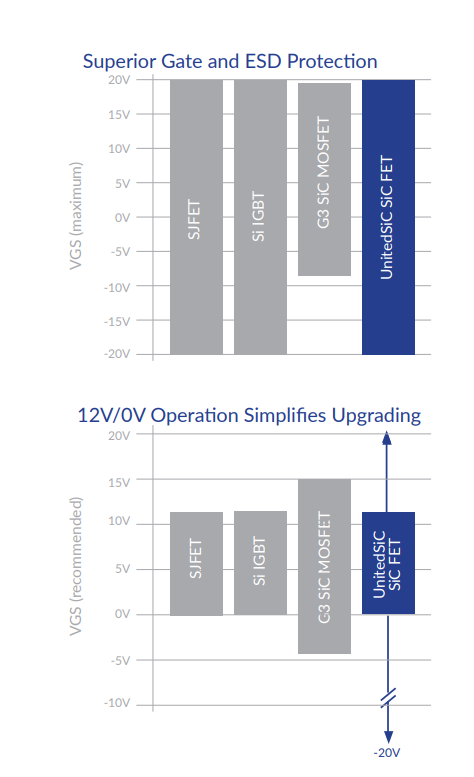

Another big advantage of this configuration is the ability to use standard Si MOSFET gate drivers for driving Qorvo’s SiC FETs as VGS can go as low as -20V and as high as 20V. This again makes it also compatible with IGBT and SiC MOSFET designs.


So, in summary, among others, Qorvo’s SiC FETs offer industry’s lowest RDS,ON and best switching figure-of-merit (RDS,ON*COSSTR, RDS,ON*EOSS). Additionally, it is compatible with industry standard gate drivers.


Replacement of Si or SiC MOSFETs with Qorvo SiC FETs


Qorvo’s SiC FETs are in general pin compatible to other solutions in the same package but not necessarily drop in compatible. Qorvo’s SiC devices are very fast switching devices with excellent body diode characteristics. That means the operating di/dts value can be very high.

In most cases therefore it will be necessary or at least recommended to add an RC snubber to tune the switching performance and handle these high di/dts, especially when using standard 3-terminal packages.

These snubbers can help to reduce voltage overshoots, suppressing gate oscillations and improving EMI. If no RC snubber would be used it would be necessary to apply higher value external gate resistors to slow down the SiC device to avoid VDS spikes and ringing during the turn-off transients. This would have the effect of higher overall switching losses. In fact, Qorvo shows with Double Pulse Tests that even small snubber components lead to much better performance, meaning lower switching losses than slow down SiC devices with higher gate resistor values. These improvements are valid for both, hard and soft switching applications.


Qorvo’s application note and user guide show this in more detail:

In this documents Qorvo also shows that using a snubber simplifies design efforts to make designs compatible with other SiC switch manufacturers, and makes the designs more tolerant of layout issues.


Portfolio Overview


SiC FETs from Qorvo are available with the following parameters:


BVDS (min.)             RDS,ON (typ) max              RDS,ON (typ) min                   ID Max (@25°C)

650V                            85mOhm                                6.7mOhm                               up to 85A

  750V                             58mOhm                                5.4mOhm                               up to 120A

1200V                             410mOhm                              9mOhm                                  up to 120A

1700V                             410mOhm                              410mOhm                              up to 7.6A


Available packages are D2PAK-3L and D2PAK-7L, TO-220-3L and TO247 with 3 or 4 Leads. Inside the 750V line-up now also a TOLL package option is available for R  DS,On 5.4, 8.6 and 18 mOhm.
