3PEAK – Low Power Operational Amplifiers

Operationsverstärker mit geringem Stromverbrauch

Let’s take a closer look at the low-power operational amplifiers from the manufacturer 3PEAK. The portfolio includes amplifiers with quiescent current in the nano-ampere range and low bandwidth in the kilohertz range up to amplifiers with bandwidths in the megahertz range and quiescent current in the micro-ampere range.

The 3PEAK portfolio offers solutions for various applications with different power consumption requirements. From sensor interfaces, filters, motor controllers, white goods and medical applications to battery-powered mobile and portable devices as well as applications using energy harvesting.

Highlights in 3PEAK’s Low-Power OpAmp Portfolio

TP211x

  • Supply Voltage: 1.8V…6V or ±0.9V…±3V
  • Quiescent Current: 300nA (typ.) / 500nA (max.)
  • Input Bias Current: 0.1fA (typ.)
  • Input Offset: ±1.5mV
  • Input Offset Drift: 0.4µV/°C
  • Bandwidth: 10kHz
  • Rail-to-Rail I/O

TP156xAL1

  • Supply Voltage: 2.5V…6V
  • Quiescent Current: 600µA (typ.)
  • Input Offset: ±3mV
  • Input Offset Drift: 1µV/°C
  • Input Noise Density: 19nV/√Hz (@1kHz)
  • Bandwith: 6MHz
  • Rail-to-Rail I/O


Application example with TP211x

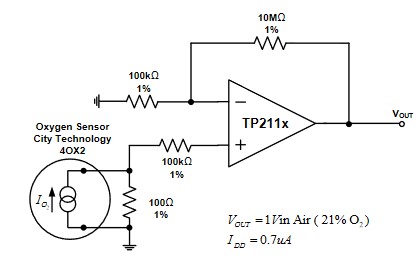

The TP211x can be used for signal amplification of oxygen sensors. An exemplary schematic can be found in the diagram on the right. For the version with one channel (TP2111), 2 versions are available – with and without shut-down pin. In shut-down mode, the TP2111N typically consumes only 3nA typical and its output is switched to high impedance.

The operating temperature range of -40°C to +125°C enables use in many different applications, even if high temperatures occur close to a sensor due to the process environment.


Actual portfolio of Micro- & Low-Power-OpAmps by 3PEAK

The following table gives an overview of the currently available derivatives. All listed products are Rail-2-Rail I/O operational amplifiers

Part Number

Product Grade

CH

VDDmin(V)

VDDmax(V)

GBWP(MHz)

eN@1kHz ( nV/√Hz )

VOS TC(µV/°C)

IBIAS(pA)

IQ(Typ.)(per CH)(μA)

IQ(Max.)(per CH)

Package

TP2111

I

1

1,8

6

0,01

265

0,4

0,0001

0,3

0,5

SOT353,SOT23-5

TP2112

I

2

1,8

6

0,01

265

0,4

0,0001

0,3

0,5

SOP8,MSOP8

TP2121

I

1

1,8

6

0,018

170

0,5

0,001

0,6

0,8

SOT353,SOT23-5

TP2122

I

2

1,8

6

0,018

170

0,5

0,001

0,6

0,8

SOP8,MSOP8

TP2124

I

4

1,8

6

0,018

170

0,5

0,001

0,6

0,8

SOP14,TSSOP14

TP1511

I

1

2,1

6

0,15

95

0,6

1

4

5,6

SOT353,SOT23-5

TP1512

I

2

2,1

6

0,15

95

0,6

1

4

5,6

SOP8,MSOP8

TP1514

I

4

2,1

6

0,15

95

0,6

1

4

5,6

SOP14,TSSOP14

LMV321TP

I

1

2,1

6

1,27

39

0,6

1

40

51

SOT353,SOT23-5

LMV324TP

I

4

2,1

6

1,27

39

0,6

1

40

51

SOP14,TSSOP14

LMV358TP

I

2

2,1

6

1,27

39

0,6

1

40

51

SOP8,MSOP8

TP321

I

1

2,1

6

1

45

2

10

45

87

SOT353,SOT23-5

TP324

I

2

2,1

6

1

45

2

10

45

87

SOP8,MSOP8

TP358

I

4

2,1

6

1

45

2

10

45

87

SOP14,TSSOP14

TP6001

I

1

2,1

6

1

27

2

1

80

130

SOT353,SOT23-5

TP6002

I

2

2,1

6

1

27

2

1

80

130

SOP8,MSOP8,TSSOP8

TP6004

I

4

2,1

6

1

27

2

1

80

130

SOP14,TSSOP14

LMV324B

I, C

4

2,5

5,5

1

35

2

1

80

130

SOP14,TSSOP14

LMV321B

I

1

2,5

5,5

1

35

2

1

80

130

SOT353,SOT23-5

LMV358B

I, C

2

2,5

5,5

1

35

2

1

80

130

MSOP8,TSSOP8,SOP8

TP1561AL1

I, A

1

2,5

6

6

19

1

1

600

900

SOT353,SOT23-5

TP1562AL1

I,I(AEC-Q100)

2

2,5

6

6

19

1

1

600

900

SOP8,MSOP8,TSSOP8

TP1564AL1

I,I(AEC-Q100)

4

2,5

6

6

19

1

1

600

900

SOP14,TSSOP14

TPA6581

I

1

2,7

5,5

10

10

0,1

10

1200

1500

SOT353,SOT23-5

TPA6582

I

2

2,7

5,5

10

10

0,1

10

1200

1500

SOP8,MSOP8,TSSOP8

TPA6584

I

4

2,7

5,5

10

10

0,1

10

1200

1500

SOP14,TSSOP14
