Nuvoton – GUI Creation Tool emWin embedded GUI

Nuvoton - GUI Creation Tool emWin embedded GUI

Nuvoton – New GUI creation tool for emWin available for Nuvoton’s Cortex-M, ARM9 and Cortex-A35 – now with AppWizard.

As Nuvoton and SEGGER continue to expand their collaboration, customers developing with Nuvoton MCUs and MPUs have access to new tools to make user interface design more attractive, easier and more efficient.


Nuvoton & SEGGER

Both companies have been working together for a long time to give developers the opportunity to implement user interfaces efficiently based on the emWin environment. Customers of Nuvoton can benefit from this free of charge. Depending on the performance of the processor, different display resolutions are supported:

Plattform

Cortex-M0

Cortex-M23

Cortex-M4F

ARM9

Cortex-A35

Nuvoton Serie

M032

M2354

M460, M480

N9H20, N9H26, N9H30

MA35D1

Auflösung bis px x px

320 x 240

320 x 240

480 x 272

800 x 480 , 1024 x 768

1920 x 1080


Entwicklungstools SEGGER emWin Embedded GUI & AppWizard


With the emWin Embedded GUI environment, high-quality graphics functions can be used to build a user interface. The flexible configuration of the display resolution as well asNuvoton - GUI Creation Tool emWin embedded GUI working with virtual and native resolution of the used display allow a fast and versatile implementation.
The efficient and optimized use of RAM and Flash resources of the processors results in high-performance solutions. The AppWizard also offers the possibility to realize the GUI design and the operating functions. There is no need for prior deep learning of emWin or knowledge of programming C code for HMIs.

Nuvoton has made the experience that customers were able to generate the necessary C-code within 1-2 days using emWin – supported by the AppWizard. This saves time and money in the otherwise costly developments of devices with graphical user interfaces.


Development Support

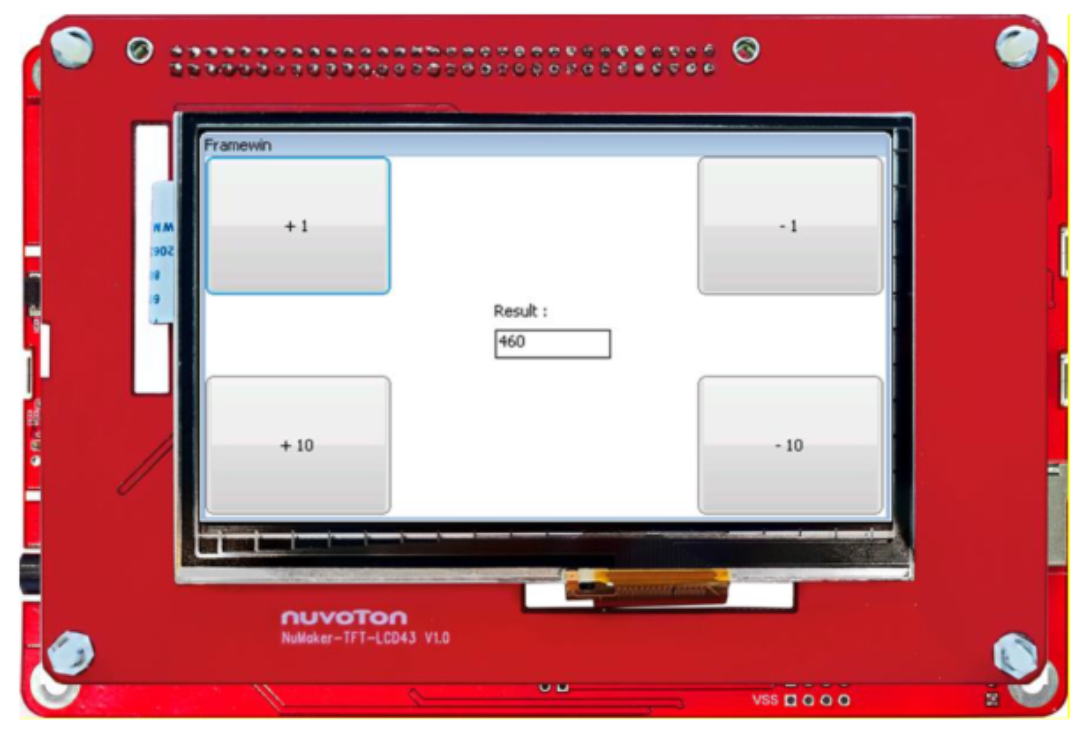

For each of the above-mentioned product families, Nuvoton offers a suitable development kit – especially tailored to HMI. These can be easily identified, as the name always includes “NuMaker-HMI-” and the respective product name, for example NuMaker-HMI-M467.

A more detailed overview can be found on Nuvotons GUI Solution Landing Page.
