Haechitech – Temperature-sensing for many applications

Haechitech expands their temperature sensing portfolio with more ICs. In addition to the recently launched MXH1310 and MXH1320 they now also started the production of the MXH1330. Each of them for a specific direction.

These products have a market standard package and pin map and since the shortage issues also affect the temperature sensor market, they can replace nearly any competitor product.



The MXH1310 is focused on its 5V operating voltage so it works for most industry standards. For low voltage applications (~2V) Haechitech offers the MXH1320 and MXH1330.  While the MXH1320 focuses on its low power consumption, so it is ideal for any Neue Temperatursensoren MXH13xxbattery-powered products. The last one, the MXH1330, features a very small package, so it can fit in almost any design.




Operating Voltage



Current consumption

Slave Address



2.7V ~ 5.5V

I²C, Interrupt

-10°C~ +100°C: ±0.5°C

-40°C ~ +125°C: ±1°C

3.5uA @ 0.25Hz. 3.3V

1uA @ Shutdown






1.4V ~ 3.6V

I²C, Interrupt

-25°C~ +85°C: ±0.5°C

-40°C ~ +125°C: ±1°C

7uA @ 4Hz, 3.3V

0.5uA @ Shutdown




1.4V ~ 3.6V

I²C, Interrupt

-25°C~ +85°C: ±0.5°C

-40°C ~ +125°C: ±1°C

7uA @ 4Hz, 3.3V

0.5uA @ Shutdown



The MXH1310 main features

  • Supply range 2.7V to 5.5V
  • Temperature range -40°C to +125°C
  • I2C SMBUS interface
  • Reading accuracy: typical ±0.5°C from -10°C to +100°C

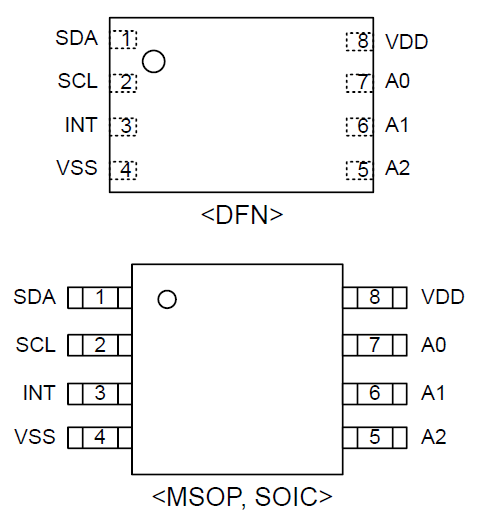

  • Packages
    • 2.0mm x 3.0mm DFN 8-pin
    • 3.0mm x 3.0mm MSOP 8-pin
    • 4.9mm x 6.0mm SOIC 8-pin

MXH1320 overview

Its voltage range is between 1.4 to 3.6 V with a low quiescent current of 10μA over the entire operating range.

  • Supply range 1.4V to 3.6V
  • Temperature range -40°C to +125°C
  • I2C SMBUS interface
  • Temperature reading accuracy: Typical ±0.5°C from -25°C to +85°C
  • Low quiescent current: Max. 10uA in active, max. 1uA in shutdown

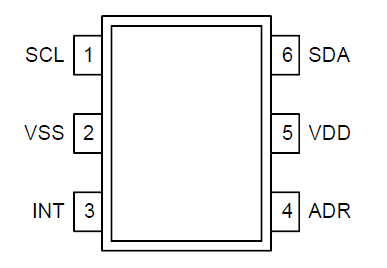

  • Small size package
    • 1.6mm x 1.6mm SOT563

The new MXH1330

Das ist der neueste und auch der kleinste ICder Serie. Hier die weiteren Features:

  • Supply Range 1.4V to 3.6V
  • Temperature Range -40℃ to +125℃
  • Temperature reading accuracy: typical ±0.5℃ from -25℃ to +85℃

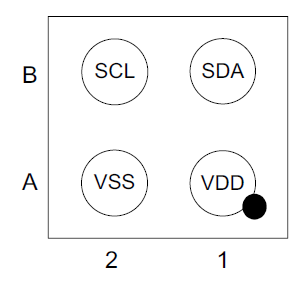

  • Small size package
    • 0.83mm x 0.76mm WLCSP

Are you looking for a suitable sensor for your new design or or are you searching for an alternative for your current one? Then talk to us about our possibilities with Haechitech.
