Epson has successfully developed the world’s smallest* inertial measurement unit (IMU)[1].

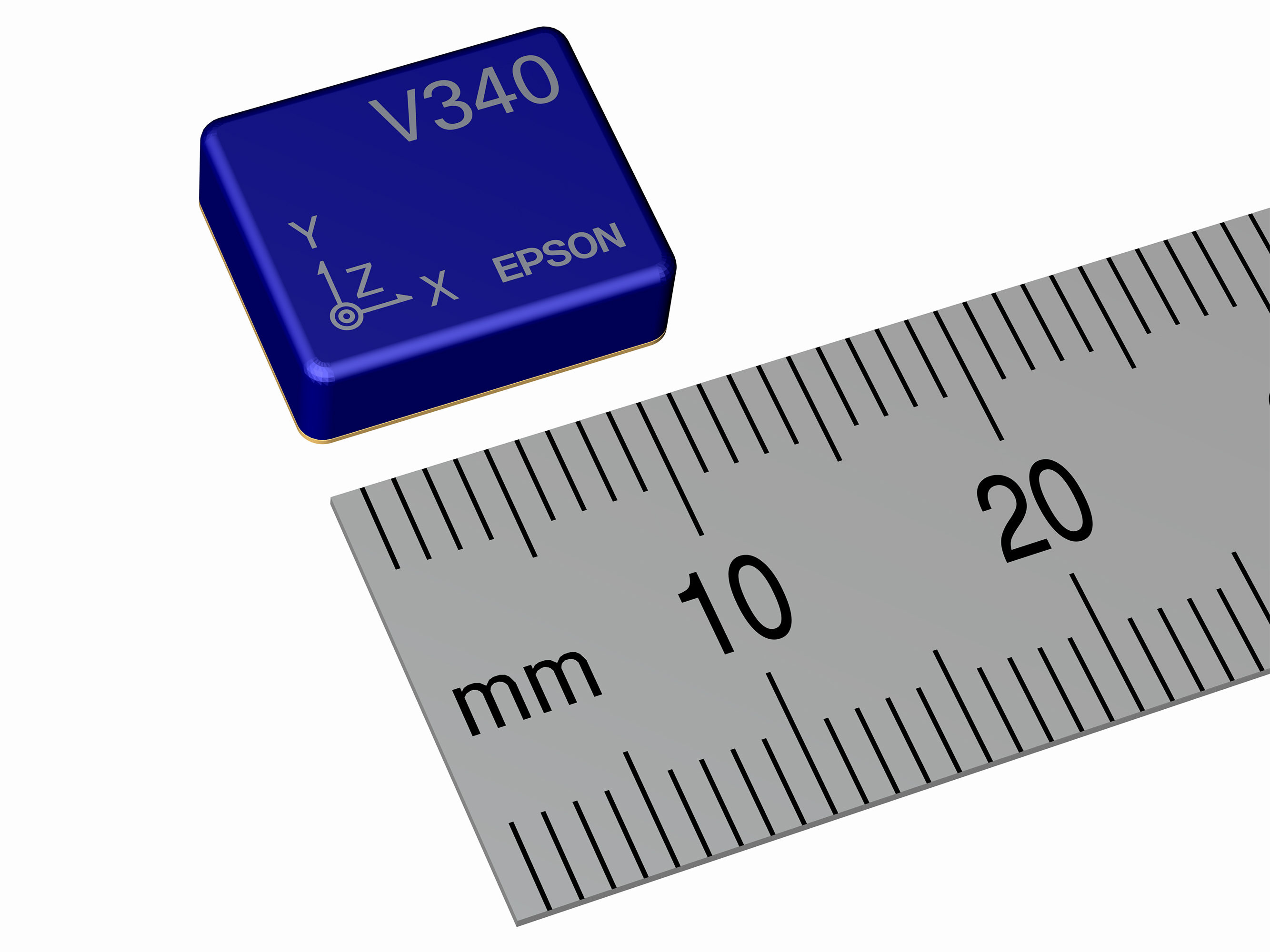

As with all upcoming IMUs in the V series, the new M-V340 is far smaller, far lighter, and consumes far less current than Epson’s current IMU, the M-G350. Epson developed a dedicated IC for the V series that enabled the company to reduce the number of parts and optimize the design of the layout to create an IMU that measures 10 x 12 x 4 mm, weighs 1 gram, and consumes just 18 mA of current, typical. In addition, equipped with QMEMS [2] gyroscopic sensors [3], the tiny yet powerful new IMU also exhibits high performance characteristics (7 deg/hr gyro bias instability [4]).
The M-V340 is small enough to be used in ultra-compact, lightweight devices to enable IMU applications in a variety of fields. In the medical and rehabilitation fields in particular, ultra-compact, lightweight devices equipped with an IMU show promise in the measurement of movement, as they can be attached to a patient to accurately measure movement without limiting motion or feeling obtrusive.
“Given the present rapid pace of social and technological change, Epson believes that the need for precision sensors that can make previously invisible information visible will only grow going forward,” said Yoshiyuki Moriyama, COO of Epson’s Sensing Systems Operations Division. “In response to growing and diversifying customer needs, Epson has been filling out and strengthening its lineup of IMUs.”
In addition to the M-V340, Epson already introduced the high-performance M-G352 and M-G362. Epson will continue to leverage its unique technology to provide IMUs and other sensing systems that significantly contribute to our customers’ products and services.
* The smallest IMU among high-performance IMUs having gyro bias instability of 10 dph or less (as of the beginning of August 2013, according to Epson’s research)
Product number | M-V340 (new product) |
M-G350 (currently in volume production) |
Gyroscopic sensor measurement range |
±450 deg/sec | ±300 deg/sec |
Gyro bias instability | 7 deg/hr | 6 deg/hr |
Accelerometer [5] measurement range |
±6 G | ±3 G |
Data output format | 16 bit | |
Data output speed | 1,000 sample per second (Max.) | |
Interface | SPI/UART | |
Dimensions | 10 × 12 × 4 mm (1/12 the size of the M-G350) |
24 × 24 × 10 mm |
Weight | Approx. 1 g (1/7 the weight of the M-G350) |
Approx. 7 g |
Current consumption | 18 mA @3.3 V (40% less than the M-G350) |
30 mA @3.3 V |

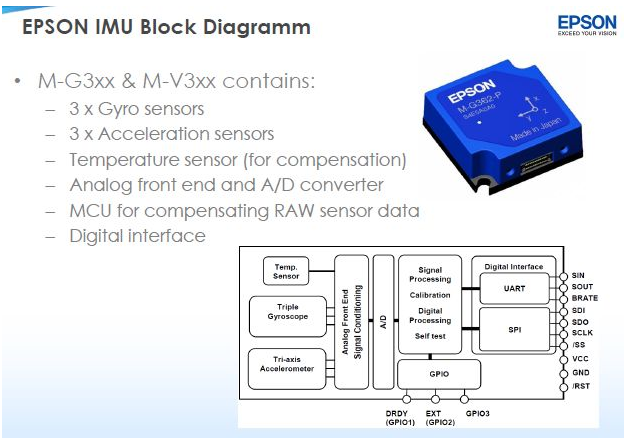

[1] Inertial measurement unit (IMU): A device for sensing inertial motion that consists of angular rate sensors on three axes and accelerometers in three directions.
[2] QMEMS: QMEMS is a combination of “Quartz,” a crystalline material that has excellent stability and precision, and “MEMS,” micro electro-mechanical systems engineered using micro-fabrication technology. QMEMS devices, produced via a micro-fabrication process on a crystalline material, combine the advantages of MEMS technology with the fundamental superiority of Quartz. QMEMS is a registered trademark of Seiko Epson Corporation.
[3] Gyroscopic (angular rate) sensor: A sensor that measures rotation angle (angular rate) of an object per unit of time with respect to a reference axis
[4] Gyro bias instability: The random variations having 1/f noise density characteristics of gyro output bias calculated by averaging a specified finite length of sampling times and time intervals
[5] Accelerometer: A sensor that measures changes of velocity per unit of time
Please visit Epson for further details about these products.
