Nuvoton – KA441xx Motor Driver IC Family

Nuvoton KA441xx Motor Treiber

In this article we would like to introduce you the motor driver IC family from Nuvoton – focusing on the BLDC motor drivers.

Besides these, the family also includes stepper motor drivers with mix-decay function and motor drivers for cameras for simultaneous driving of the motors for iris, zoom and focus.

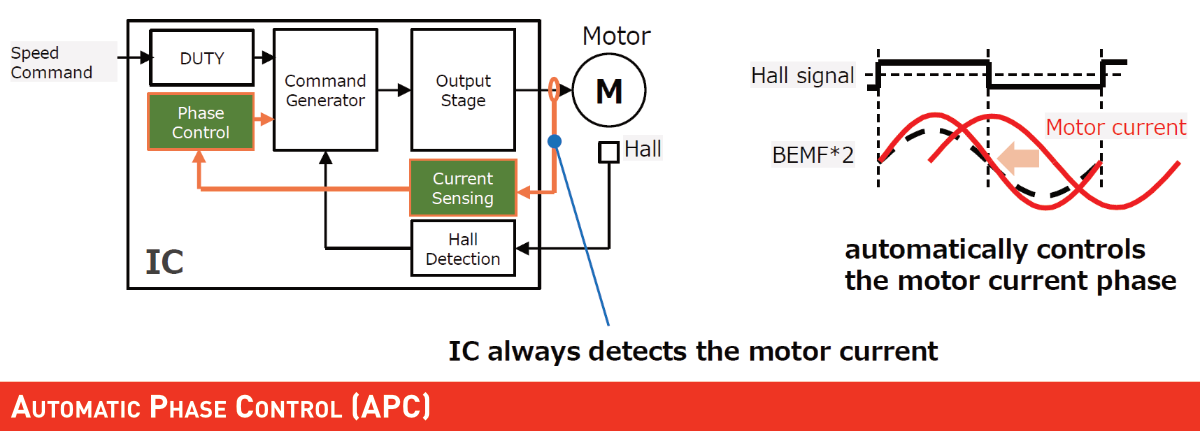

The BLDC motor drivers are highlighted by the integrated Auto Phase Control (APC). With this technology, in-house developed by Nuvoton, the phase shift of the motor current is automatically corrected. This is done by continuously measuring the motor current, which enables the correction to be made.

The automatic phase correction keeps the highest efficiency throughout the entire operation. In this way, reliable, safe and resource-saving motor systems can be realised.

In addition to the APC function, the drivers also include a soft-switching function that enables silent motor operation.

This BLDC motor drivers are especially interesting for fan applications in household appliances, servers or in the industry. Nuvoton also offers suitable motor drivers for high-speed motors.

Nuvoton KA441xxx Motor Driver Family for BLDC

The BLDC motor driver family from Nuvoton currently consists of six drivers for single-phase or three-phase motors (KA44143A). These are designed for different fan applications. All include the APC feature already introduced. The drivers for “lower” motor speeds also have integrated MOSFETs and are designed for 12V or 24V systems.

The KA44171A for very high motor speeds (≥100krpm) requires external MOSFETs, therefore only the gate drivers are already integrated. In addition to the APC feature, it also includes a so-called “rapid soft-switching” function. This allows the curve of the motor current to be influenced, thus enabling the high speeds. The configuration is done via pin configuration.


The motor drivers from Nuvoton also have various integrated protection functions:


  • Motor lock protection
  • Under voltage lockout
  • Thermal protection
  • Over current protection

An AEC-Q100 Grade 2 qualification is already available for the KA44173A, and is being planned for the other ICs.

Depending on the IC, a PWM signal or a DC voltage can be used for control.


Product Overview

PartNo Motor Type Phase Features Sensor Control interface Ron(Ω) Operating Voltage(V) Output Voltage [max](V) Output Current [max](A) Top Package
KA44143A BLDC 3 APC, PWM sinusoidal control 1 PWM/DC 1.0 12V / 24V 28 2.2 -40 to +105°C QFN24L 4x4mm
KA44168A BLDC 1 APC, PWM softswitching 1 1.6 12V / 24V 35 1.0 -40 to +105°C MSOP8L 3x3mm
KA44169A BLDC 1 APC, PWM softswitching 1 PWM 1.6 12V / 24V 36 1.4 -40 to +105°C TSSOP14L 4.4×5.0mm
KA44169AB BLDC 1 APC, PWM softswitching 1 DC 1.6 12V / 24V 36 1.4 -40 to +105°C TSSOP14L 4.4×5.0mm
KA44170A BLDC 1 APC, PWM softswitching 1 PWM 1.25 12V / 24V 36 1.6 -40 to +105°C TSSOP14L 4.4×5.0mm
KA44171A BLDC 1 APRaS, PWM softswitching 1 PWM/DC Pre-Dr 12V / 24V / (48V) 39 0.03 -40 to +105°C QFN20L 3x3mm

The KA441xx motor driver IC family offers an efficient and simple way to implement motor control. We will be happy to advise you on this and other solutions from Nuvoton for such applications. Please contact us directly or send us your enquiry using the following form
