Magnachip – Announces MDD08N067RH – N-channel Trench MOSFET 78V 6.7 Milliohm 70A & Magnachip MOSFETs available in 18 weeks for SOP quantity

The MDD08N067RH uses advanced Magnachip’s MV MOSFET Technology, which provides high performance in on-state resistance, fast switching and excellent quality.

MDD08N067RH is suitable to drive motors and for all general purpose applications which require high efficiency.

Key performance parameter

VDS

78 V

RDS(on), max

0.0067 Ω

ID

70 A

QG

43.3 nC

Junction temperature max

175 °C

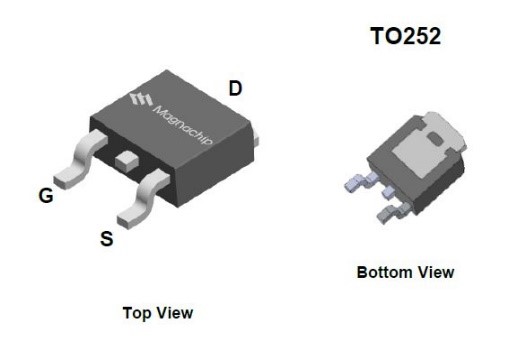

MDD08N067RH N-Channel MOSFET 78V



Features and benefits

  • MagnaChip’s MOSFET Technology
  • Very low on-resistance RDS(on)
  • 100% Avalanche / Rg Tested

If you have problems with your supply chain for your application and you want to qualify an alternative power solution from Magnachip please get in contact with us!
