ATTEND – Advanced Connectivity Solutions

ATTEND Advanced Connectivity Solutions


ATTEND – Advanced Connectivity Solutions: Attend and Ineltek have signed a distribution agreement. We are pleased to be now able to offer you connectors from many different categories!

The Taiwanese manufacturer ATTEND offers a broad portfolio of connectors and cables such as memory card sockets, PCB card sockets, I/O connectors and customised cables. These can be used in almost any application in industry, networking equipment, healthcare, transportation or consumer electronics – wherever reliable contacting is required!

Main product groups of ATTEND

ATTEND intensively analyses the requirements of the market in order to constantly expand the suitable range with connectors from many categories such as

  • Flash Memory Socket: SD, micro SD, CF, CF Express, CFast, SmartCard
  • PCB Card Socket: M.2, Mini PCI, Mini PCI Express, MXM, SO DIMM, SIM Card
  • I/O Connectors: SPE, USB, HDMI, RJ45, SPF/ QSPF, OBD2
  • Circular Connectors: M Series with different diameter & pin count, Plastic A / B /C / D Size for mission critical applications, Sealed I/O
  • Power Connectors: Battery Connector, Spring Loaded Pogo Pin & Connectors
  • Board-to-Board: FPC Connectors
  • Micro Coaxial RF: 100MHz up to 6 / 12 GHz

The range also includes waterproof connectors from various areas & “mission-critical” types for applications in which the connection under no circumstances may be lost during operation.

ATTEND also offers standard and customized cable solutions.

Applications & examples for ATTEND – Advanced Connectivity Solutions

As mentioned, ATTEND focuses on current market requirements. In addition to standard connectors, ATTEND offers special features in every product group, e.g. by introducing the 214A series of RJ45 connectors in May 2024, which is a good example of this innovative strength.

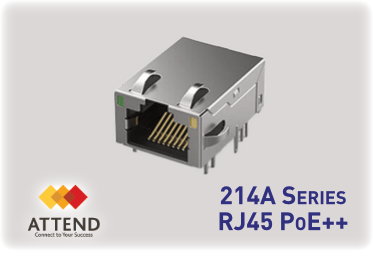

RJ45 – 214A Series

In order to fulfil current requirements in networking technology, transmission speeds of up to 10G BASE-T are possible with this series. PoE++ is also supported – the RJ45 connectors are compliant with the IEEE 802.3bt standard and allow up to 61W per port. An industrial temperature range of -40°C to +85°C and corrosion resistance guarantee long-term use in applications that require more than 30W where a separate power supply is not wanted.

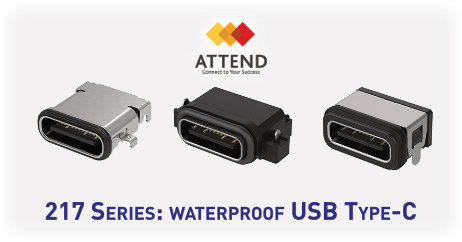

USB Type-C – 217 Series (waterproof)

ATTEND Advanced Connectivity Solutions - USB Type C


This new product series introduced in March 2024 is suitable for data rates up to 10Gbps. USB PD is supported up to 20V at 5A. With achieving the IPX7 and IPX8 waterproof class and an industrial temperature range of -40 to +85°C, even harsh environmental conditions are no problem.

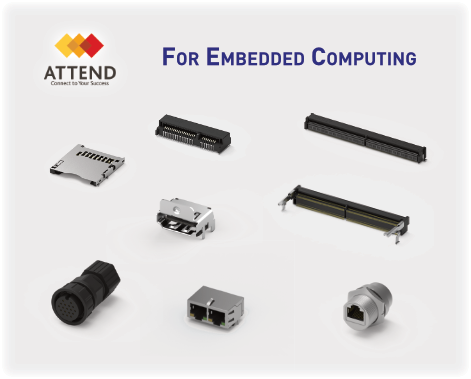

Embedded Computing – MXM, SO-DIMM & I/O Connectors & more

ATTEND Advanced Connectivity Solutions - MXM, SODIMM,HDMI,USB


The ATTEND MXM connectors are suitable for a wide range of SMARC, Qseven, Apalis and EDM Computer-on-Modules. The MXM2 with 230 pins and MXM3 with 314 pins comply with these standards.

These CoMs are popular in many applications such as gaming, HMI systems in industry, medical technology, in the infotainment sector or input systems in industry. In addition to MXM connectors, ATTEND also offers the appropriate SO-DIMM connectors for DRAM modules (currently up to DDR5), MiniPCI & miniPCI Express and M.2 connectors.

In the I/O area ATTEND offers a wide range of products for USB, HDMI, RJ45 & SPF (SPE in planning) connections up to SD and CF card holders – everything interesting in the embedded computing area.

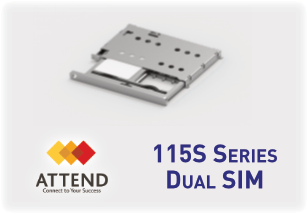

Dual Nano SIM card holder

The need for dual SIM solutions in mobile phone applications has increased significantly in recent years. ATTEND Advanced Connectivity Solutions - Dual SIMThe 115S series from ATTEND offers space for 2 Nano SIMs on one tray next to each other instead of one behind the other. This makes inserting and ejecting the tray much easier, as the risk of jamming is significantly reduced. With 2000 mating cycles and a temperature range of -40 to +105°C, these are ideal for use in embedded systems that require stable accessibility due to 2 SIM cards, such as GPS trackers for cars.

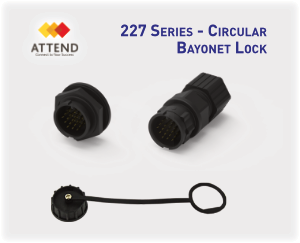

Circular connectors with bayonet lock – 227 Series


The 227 series of plastic circular connectors are made of PA66 and are UL94V-0 classified. The gold contacts are highly corrosion-resistant and designed for 1000 mating cycles. Thanks to the bayonet lock, the use in environments with a lot of vibrations is no problem.

Types A, B, C & D are available. You have the choice of different layouts from 4 pin (20A) to 25 pin (2A).

These are just a few examples from the ATTEND – Advanced Connectivity Solutions. Contact us directly for more information or send us your enquiry here
