SIMCom introduces the new Small Sized LTE CAT 1 Module A7682E

A7682E is the LTE Cat 1 module that supports wireless communication modes of LTE-FDD/GSM/GPRS/EDGE.

It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

A7682E adopts LCC+LGA form factor and is compatible with SIM800C, SIM868series (GSM/GPRS modules), which enables smooth migration from 2G products to LTE products, and greatly facilitates more compatible product design for the customer needs.

A7682E supports multiple built-in network protocols, supports drivers for main operation systems (USB driver for Windows, Linux and Android etc.) and software function. AT commands are compatible with the SIM800 series modules. Meanwhile A7682E integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, industrial routers, and remote diagnostics etc.

Product Advantages


  • LCC+LGA form factor with abundant interfaces
  • Suitable for LTE and GSM networks
  • Abundant software functions: FOTA, LBS, SSL
  • Compatible with the SIM800C,SIM868 series modules

Product Details

General Features

Frequency Bands:

LTE-FDD B1/B3/B5/B7/B8/B20

GSM/GPRS/EDGE 900/1800 MHz

Supply Voltage: 3.4V ~ 4.2V, Typ: 3.8V

Control Via AT Commands:

Operation temperature: -40℃ ~ +85℃

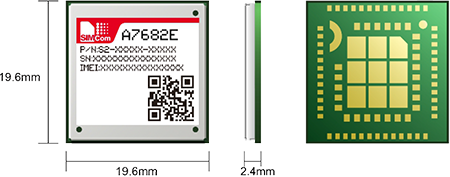

Dimensions: 19.6*19.6*2.4mm

Weight: 1.9g±0.1


Interfaces

USB2.0

UART

(U)SIM card(1.8V/3V )

Analog audio

ADC

I2C

GPIO

Antenna: Primary

Other Features

USB Driver for Microsoft Windows 7/8/10

USB Driver for Linux /Android

RIL supporting for Android 5.0/6.0/7.0/8.0/9.0

Firmware update via USB/FOTA

TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS

RNDIS/PPP/ECM

SMS

SSL


Data Transfer

LTE Cat 1:

Uplink up to 5Mbps

Downlink up to10Mbps

EDGE: Uplink/Downlink up to 236.8Kbps

GPRS: Uplink/Downlink up to 85.6Kbps


Certifications(on going)

CE/RoHS/REACH
