Ineltek is proud to be One-stop-shop for ST NFC tags and readers

Due to STMicroelectronics acquisition of ams NFC readers, INELTEK is able to offer our customers a wider range of NFC products. We can now support our customer base with a combined bundle solution of Secure NFC solutions, Controllers, Readers and Tags from ST.

Near Field Communication (NFC) was born as a specialized subset of the 13.56MHz RFID technology in 2002.

Initially used for access control and public transport payment cards, the integration into credit / debit cards and smartphones is driving rapid growth not only for payment but also as an always-on radio link for simple pairing, diagnostic readout, parameter programming and much more.

One of the pioneers of RFID and NFC technology, ST offers a comprehensive range, covering all NFC application needs, supported by a rich ecosystem. The devices include NFC / RFID tags, Dynamic NFC tags, NFC / RFID readers & NFC controllers including secure element and turnkey solutions.



en.NFC-overview-banner_V5

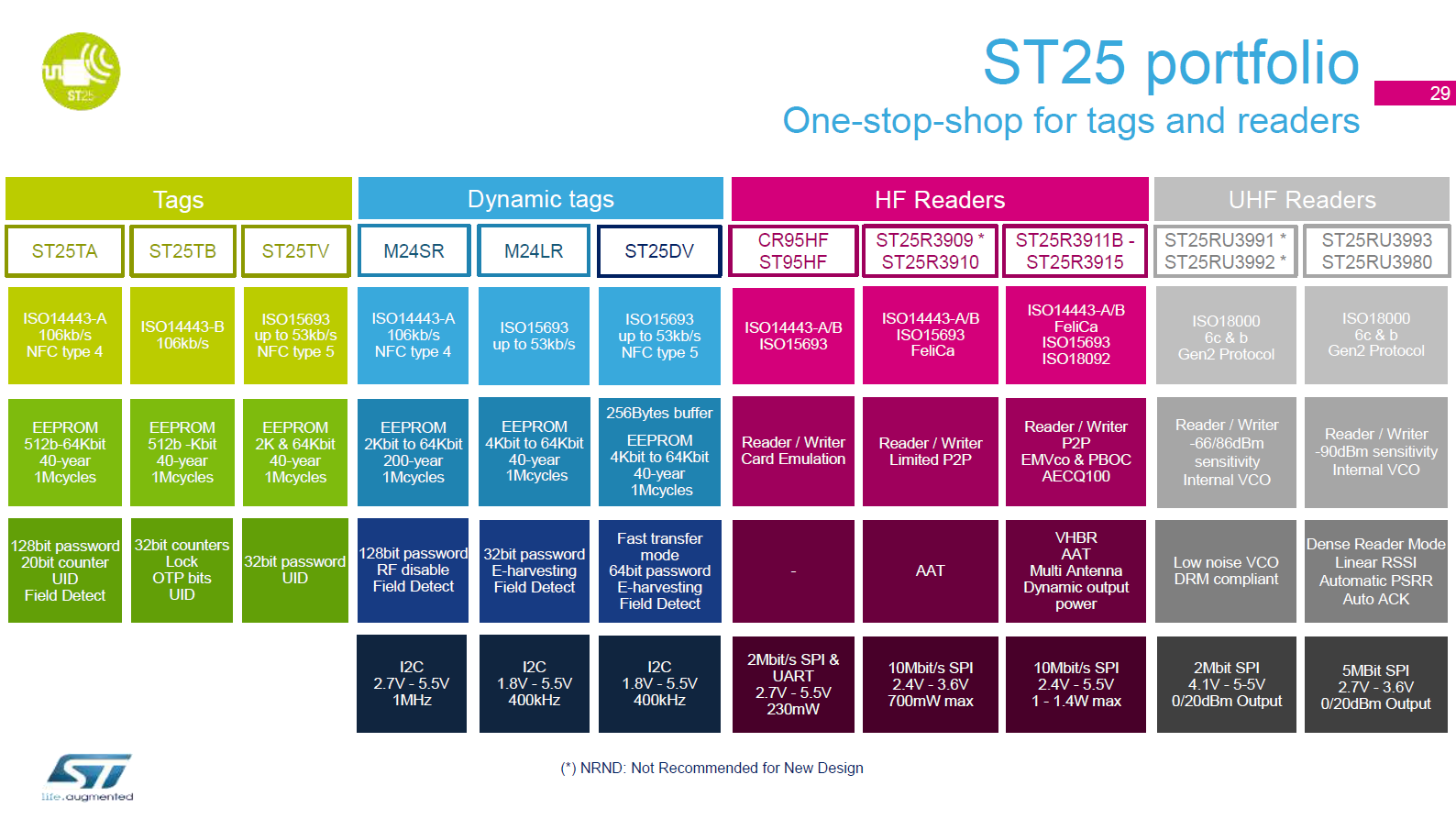

ST25 portfolio

NFC Readers (ST25RU39xx):

Standard compliant

  • ISO14443A/B
  • ISO15693
  • ISO 18092
  • FeliCa
  • NFC Forum
  • EMVCo & PBOC
  • ISO18000
  • ISO29143
  • Rain Alliance

Feature-rich

  • 13.56MHz HF interface
  • 840-960MHz UHF
  • Very High Bit Rate
  • Peer-to-Peer
  • Automatic Antenna tuning
  • Operating temperature -40°C to 125°C

Best-In-Class Reader IP

  • High Output power (up to 1.4W)
  • High Receiver sensitvity
  • Capacitive / Inductive Wake Up
  • Low power operation & Standby
  • Dense Reader Mode (DRM)

Eco-system

  • Documentation
  • Evaluation boards
  • Antenna Design Tool
  • Associated software
  • e2e community

NFC Tags (ST25TA/TB/TV) & Dynamic Tags (M24LR/SR & ST25DV):

Standard compliant

  • ISO14443A/B
  • ISO15693
  • NFC Forum

Feature-rich

  • 13.56MHz HF interface
  • Up to 32-bit counter with anti-tearing
  • Field detect (GPO)
  • OTP bytes

Best-In-Class memory

  • From 512bit to 64-Kbit
  • Up to 200 years data retention
  • 1M erase-write cycles
  • Up to 128-bit password

Eco-system

  • Documentation
  • Evaluation boards
  • Antenna Design Tool
  • Associated software
  • e2e community

To receive even more information like technical data sheets, samples, EVBs or price information please contact an Ineltek office within your area or contact us at info@ineltek.com.
