Smallest Wi Fi System on Module (SoM) – Only 8 mm x 8 mm – for Battery Powered IoT Applications



The SiP (System in Package) allows IoT device makers to reduce the size of their electronic circuit hence achieving a small form factor for their end products.

Based on the world’s lowest power Wi-Fi SoC DA16200, the HJ-DA16200 SiP enables the same battery life as the existing DA16200 modules but in a much smaller size (8 mm x 8 mm).

DA16200 Hongjia

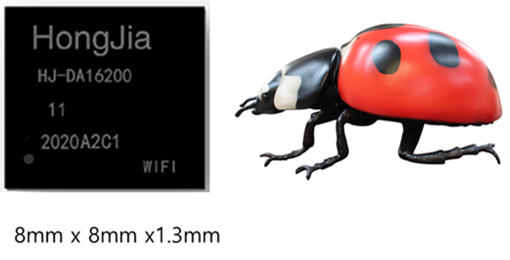

HJ-DA16200

Small size is critical for many IoT applications. SiP (System in Package) allows IoT device makers to reduce the size of their electronic circuit hence achieving a small form factor for their end products. Dialog’s partner Tangshan HongJia Electronic Technology Co., Ltd. has developed an ultra-small, ultra-low power Wi-Fi SIP module with Dialog’s DA16200, the world’s most power-efficient Wi-Fi SoC. The HJ-DA16200 delivers the same long battery life and low power consumption offered by DA16200 module but in a much smaller form factor.

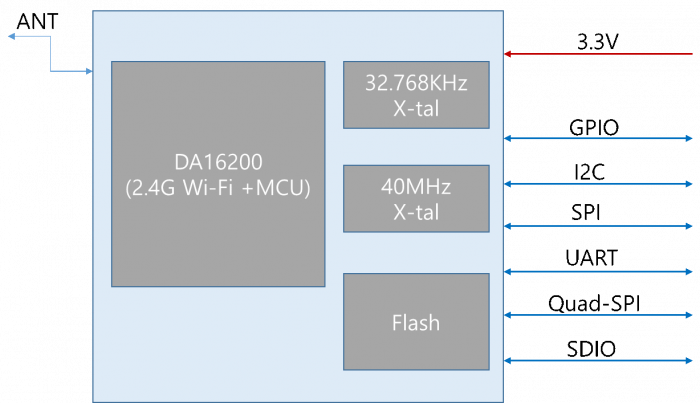

The fully integrated SIP consists of the DA16200 SoC, 2MB or 4MB flash memory, RF components including crystal oscillator, RF lumped filter, and an antenna. The built-in antenna is sufficient for normal application, and the external antenna can also be extended. Support customer 2-layers PCB design.

The SIP has 40 pins in 8 x 8 x 1.3mm LGA package including GPIOs, JTAG, RTC control, UART, power input and Antenna Pin (optional to use external antenna).



Features

  • Ultra Low Power
  • Superior Range
  • Highly Integrated SoC
  • Full Offload
  • Simple Setup & Provisioning
  • Complete Software Stack
  • Leading Security
  • OTA Firmware Update
  • Multiple I/Os
  • eMMC/SD Expanded Memory
  • Built-in high-performance antenna (External antenna can also be used)
  • Size: 8 x 8 x 1.3mm
  • Package: LGA40
  • Operating temperature: -40℃ to +85℃

Applications

  • Wearables
  • Thermostats
  • Door locks
  • Security cameras
  • Video door bells
  • Temperature sensors
  • Smoke detectors
  • Other wireless sensors
  • Garage door openers
  • Pet trackers
  • Asset trackers
  • Home automation
  • Commercial
  • Industrial
  • Residential
  • And any other Wi-Fi application requiring small size
