ST25 NFC / RFID Readers

STMicroelectronics

The ST25R HF reader series provides multiprotocol support for 13.56 MHz NFC / RFID communications as ISO / IEC 14443 Type A or B, ISO / IEC 15693, ISO / IEC 18092, FeliCa and NFC Forum protocols.

They integrate an SPI interface for interface to a host microcontroller.

  • The 95HF products are suitable for a wide spectrum of applications including identification, authentication, product configuration, access control, door locks and industrial tag readers.
  • ST25R39xx devices provide a complete solution for payment and point of sale terminals (POS) with the ST25R3911B/12/13 boasting EMVCo & PBOC certifications while the ST25R3914/15 are full AEC-Q100 grade 1 automotive grade making them ideal for keyless entry and immobilizer applications. They are also ideal applications like access control, door locks and gaming.



The ST25RU UHF reader series provides multiprotocol support for the 840-960 MHz UHF band compliant with ISO 18000 6c & b, ISO 29143 and UHF EPC GEN2 RAIN standards.

  • The ST25RU39xx devices are optimized for solutions for supply chain and logistics applications, asset tracking, cold chain management and a variety of IoT based applications.
en.NFC_logo_TM en.reader_icon2 en.RS2195_POS_payment_light_green-01 en.RS229_world_pink

Standard compliant

  • ISO14443A/B
  • ISO15693
  • ISO 18092
  • FeliCa
  • NFC Forum
  • EMVCo & PBOC
  • ISO18000
  • ISO29143
  • Rain Alliance

Feature-rich

  • 13.56MHz HF interface
  • 840-960MHz UHF
  • Very High Bit Rate
  • Peer-to-Peer
  • Automatic Antenna tuning
  • Operating temperature -40°C to 125°C

Best-In-Class Reader IP

  • High Output power (up to 1.4W)
  • High Receiver sensitvity
  • Capacitive / Inductive Wake Up
  • Low power operation & Standby
  • Dense Reader Mode (DRM)

Eco-system

  • Documentation
  • Evaluation boards
  • Antenna Design Tool
  • Associated software
  • ST community

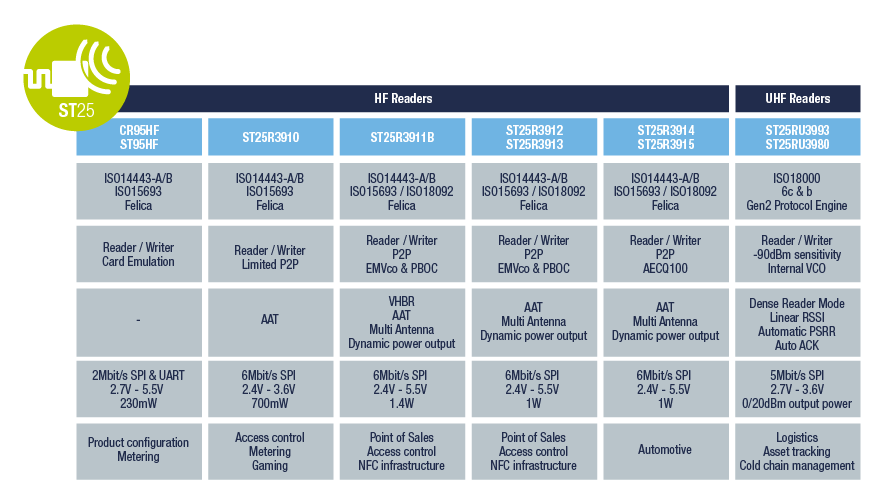

en.ST25_overview1-03





Part Number

General Description

Communication standards supported

Interface to Host (Reader)

Package

Operating Temperature (°C) min

Operating Temperature (°C) max

Output Power (mW) nom

Certification

Supply Voltage (V) min

Supply Voltage (V) max

Advanced features

Sensitivity (dBm) nom

CR95HF

NFC Reader IC

ISO14443A/B - ISO15693 - FeliCa

SPI, UART

VFQFPN 32 5x5x1.0

-25

85

230

-

2.7

5.5

-

-

ST25R3910

NFC / HF RFID Reader IC

ISO14443A/B - ISO15693 - FeliCa by transparent mode

SPI

VFQFPN 32 5x5x1.0

-40

85

700

-

2.4

3.6

AAT (Automatic Antenna Tuning),Inductive Wake up

-

ST25R3911B

NFC / HF RFID Reader IC

ISO14443A/B - ISO15693 - FeliCa

SPI

US WF V.I.,VFQFPN 5X5 32L PAD 3.5X3 PUNCHED

-40

125

1400

EMVco,PBOC

2.4

5.5

AAT (Automatic Antenna Tuning),DPO(Dynamic Power Output)I,i?? Capacitive & inductive Wake-up

-

ST25R3914

NFC / HF RFID Reader IC for Automotive

ISO14443A/B - ISO15693 - FeliCa

SPI

VFQFPN 5X5 32L PAD 3.5X3 PUNCHED

-40

125

1000

AECQ100

2.4

5.5

AAT (Automatic Antenna Tuning),DPO(Dynamic Power Output)I,i?? Capacitive & inductive Wake-up

-

ST25R3915

NFC / HF RFID Reader IC for Automotive

ISO14443A/B - ISO15693 - FeliCa

SPI

VFQFPN 5X5 32L PAD 3.5X3 PUNCHED

-40

125

1000

AECQ100

2.4

5.5

DPO(Dynamic Power Output)I,i?? Capacitive & inductive Wake-up

-

EOL

ST25RU3993

UHF RFID Reader IC

ISO18000

SPI 5 Mbps

VFQFPN 48 7x7x1.0

-40

85

-

EPC Gen2

2.7

3.6

Dense Reader Mode

-90

ST95HF

NFC Transceiver IC

ISO14443A/B - ISO15693 - FeliCa

SPI 2 Mbps

VFQFPN 32 5x5x1.0

-25

85

230

-

2.7

5.5

CE (Card Emulation )

-

ST25R3912

NFC / HF RFID Reader IC

ISO14443A/B - ISO15693 - FeliCa

SPI

VFQFPN 5X5 32L PAD 3.5X3 PUNCHED,WLCSP

-40

125

1000

EMVco,PBOC

2.4

5.5

DPO(Dynamic Power Output)I,Inductive Wake up

-

ST25R3913

NFC / HF RFID Reader IC

ISO14443A/B - ISO15693 - FeliCa

SPI

VFQFPN 5X5 32L PAD 3.5X3 PUNCHED

-40

125

1000

EMVco,PBOC

2.4

5.5

AAT (Automatic Antenna Tuning),DPO(Dynamic Power Output)I,Inductive Wake up

-

ST25R3909 (Obsolete)

NFC / HF RFID Reader IC

ISO14443A/B - ISO15693 - FeliCa by transparent mode

SPI

UFQFPN 32 5X5X0.6 PAD 3.3X3.3

-40

85

700

-

2.4

3.6

Inductive Wake up

-

ST25R3911 (NRND)

NFC / HF RFID Reader IC

ISO14443A/B - ISO15693 - FeliCa

SPI

VFQFPN 5X5 32L PAD 3.5X3 PUNCHED

-40

125

1000

-

2.4

5.5

AAT (Automatic Antenna Tuning),DPO(Dynamic Power Output)I,i?? Capacitive & inductive Wake-up

-

EOL

ST25RU3992

UHF RFID Reader IC

ISO18000

SPI

VFQFPN 64 9x9x1.0

-40

85

-

EPC Gen2

4.1

5.5

Dense Reader Mode

-86

Get more information on manufacturer's website
