Microsemi LVDT Sensor ICs



Applications

The LX3301A/LX3302A are ideal solutions for measuring mechanical movement (linear, angular/rotation and proximity) in a wide variety of applications in automotive, industrial, aero-space and commercial applications including:

  • Rotor position sensing
  • Fluid level sensing
  • Proximity detection
  • Gear position/travel (automotive)
  • Robotic arm positioning

Features

  • Linear variable differential transformer (LVDT) principle
  • Very low temperature drift
  • Dynamic signal compensation
  • Active rejection of stray magnetic fields
  • No magnet needed
  • Interfaces directly with ECU/Host
  • Rated for ASIL C applications
  • Certified to AEC-Q100 grade 0/1

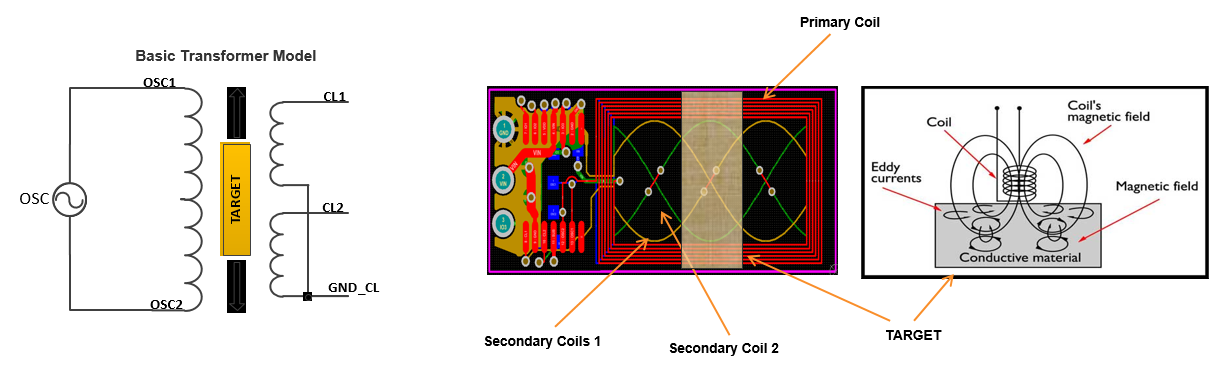

The LX3301A and LX3302A improve angular measurement accuracy, lower noise sensitivity, and reduce system costs. These inductive sensors use a primary coil to generate an AC magnetic field; the magnetic field then couples onto two secondary coils to generate voltages. The metal target disturbs the magnetic field generated by the primary coil, hence, the voltages received by the secondary coils would vary based on different metal target positions, we then use the unique ratio of the secondary coil voltages to determine the position of the metal target. By using the inductive position sensor approach, it allows us to make the biggest improvement in high-temperature and safety-critical applications such as automobile throttle body, transmission gear sensing, electronic power steering, and accelerator pedals, with no magnet needed. Both models are by principle absolute measuring sensors.



Specification

LX3301A

LX3302A

Sensor Types

Inductive

Inductive

Calibration Segments

6

8

ADC

Dual 13-bit; 2 ksps

Dual 13-bit; 2 ksps

Sin/Cos Output Capability

No

Yes

Output Interfaces

Analog, PWM

Analog, PWM, SENT, PSI5

MCU

32-bit; 8MHz

32-bit; 8MHz

EEPROM

16 x 16-bit

32 x 16-bit

ROM

3k x 32-bit

3k x 32-bit

Temperature

-40°C to 125°C

-40°C to 150°C

AEC-Q100

Grade 1

Grade 0

ISO26262

Compliant

Compliant

For more info please contact us at info@ineltek.com.
