Microchip’s „LoRa“- Long-Range Low-Power End Node Solution

Microchip`s LoRa

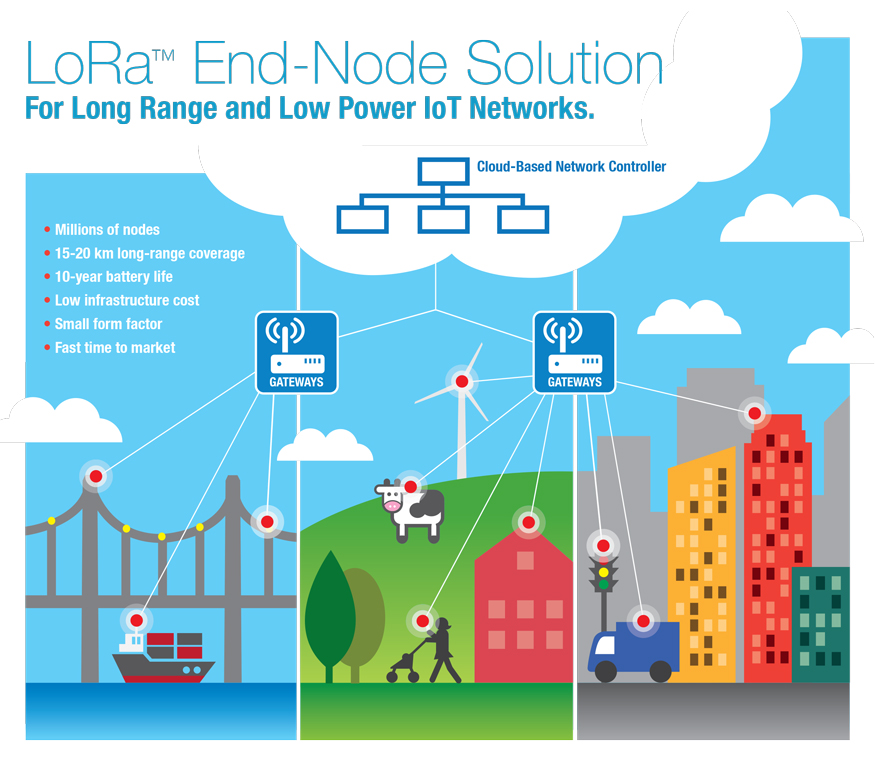

With the growing Internet of Things, Microchip has a LoRa® technology wireless solution to address increasing demands on end-devices for long range connectivity, low-power for battery operation, and low infrastructure cost for volume deployment.

LoRa Technology:

  • Long range – greater than 15 km
  • High capacity of up to 1 million nodes
  • Long battery life – over 10 years
  • Reduced synchronization overhead and no hops in mesh network
  • Secured and efficient network
  • Interference immunity

Microchip LoRa Technology Module:

  • Embedded LoRaWAN Protocol Class A – easily connects to LoRa Technology gateway
  • LoRaWAN Protocol Stack ready in system
  • Simple ASCII command set
  • Full certification by region

Products

Part Number

Output Power (dBm)

Frequency (MHz)

Package and Size (mm)

Sensitivity (dBm)

Range

Certification

RN2483

+10 at 433 MHz +14 at 868 MHz

433, 868 (Europe)

Surface mount module 17.8 x 26.7 x 3

-148

>15 km (suburban)

European R&TTE

RN2903

Adjustable up to +18.5 MHz

915 (North America)

Surface mount module 17.8 x 26.7 x 3

-146

>15 km (suburban)

FCC, CE

For more information please click here, http://www.microchip.com/design-centers/wireless-connectivity/embedded-wireless/lora-Technology

To receive even more information like technical data sheets or price information please contact an Ineltek office within your area or contact us at info@ineltek.com.
