Microchip`s dsPIC33 Digital Signal Controllers for Functional Safety

Implementing advanced motor control often requires a robust solution that offers the performance of a Digital Signal Processor (DSP) engine and the versatile peripherals of a microcontroller. Our dsPIC® Digital Signal Controllers (DSCs) offer key features and specialized peripherals to meet a variety of requirements for high-performance applications.

These applications require safe and reliable operation to protect end-user well-being. Most of the time, electrical systems operate as intended, but in the event of unexpected condition or system malfunction, safety specifications such as ISO 26262, IEC 60730 and IEC 61508 are used to ensure that manufacturers have designed their products to operate safely.

For example, our sensorless Field Oriented Control (FOC) algorithm makes use of a single-cycle MAC with data saturation, zero overhead looping and barrel shifting for exceptional performance. Discover how dsPIC DSCs, along with our ecosystem of development tools, software and other design resources, make it easy to develop your next Brushless DC (BLDC) motor, stepper motor, Permanent Magnet Synchronous Motor (PMSM) or AC Induction Motor (ACIM) application.

High-Performance dsPIC33 DSC Core

  • Up to 100 MIPS with a DSP instruction set and modified Harvard architecture for implementing fast control loops
  • Rich instruction set and addressing modes designed for real-time control where most instructions are single cycle
  • Dual 40-bit accumulators to implement single-cycle MAC instructions
  • Full-speed operation from Flash without added wait states
  • Multiple context registers and accumulators for fast interrupt switching
  • Devices with a dual-core architecture that provides a slave core dedicated for executing time-critical motor control algorithm and a master core dedicated for implementing system monitoring, user interface and communication functions

Target Applications:

  • Motor Control
  • Digital Power Conversion
  • Battery Charging / Charging Station
  • High-End (multi-string) LED Control
  • Applications with hard real time requirements

Functional Safety Ready

Select dsPIC33 DSCs have been designated as “Functional Safety Ready.” A product that contains the “Functional Safety Ready” designation offers integrated hardware safety features, Failure Modes, Effects, and Diagnostic Analysis (FMEDA) reports, safety manuals, and, in some cases, diagnostic software libraries. A TÜV SUD-certified C-compiler and a complete and fully qualified development environment are also available.

Functional Safety Readiness

Functional
Safety Readiness

ISO 26262
(ASIL B and ASIL C)

IEC 61508
(SIL 2)

IEC 60730
(Class B)

Hardware Safety Features

Yes

Yes

Yes

Safety Library

ASIL B and ASIL C Compliant
Diagnostic Library*

Releasing Soon

Class B Safety
Library

AUTOSAR® MCAL Drivers

Yes*

N/A

N/A

Safety Manual

Yes*

Releasing Soon

N/A

FMEDA Reports

Yes*

Releasing Soon

N/A

TÜV SUD-Certified Compiler

MPLAB® XC16 Compiler

Code Coverage Tools

MPLAB Code Coverage or third-party tools from vendors such as LDRA

Featured Controller Families

Product Family

CPU

CPU Speed

Program Memory

AEC Q100

Applications

dsPIC33CH512MP508
dsPIC33CH128MP508

Dual Core

90 + 100 MIPS

Up to 512 KB

Grade 0
Up to 150°C

High-Performance Embedded
Digital Power
Motor Control

dsPIC33CK256MP508
dsPIC33CK64MP105

Single Core

100 MIPS

Up to 256 KB

Grade 0
Up to 150°C

High-Performance Embedded
Digital Power
Motor Control
Sensor Interfacing

dsPIC33EP128GS808

Single Core

70 MIPS

Up to 128 KB

Grade 1
Up to 125°C

High-Performance Embedded
Digital Power

dsPIC33EV256GM106

Single Core

70 MIPS

Up to 256 KB

Grade 0
Up to 150°C

High-Performance Embedded
Motor Control
Sensor Interfacing



Functional Safety Relevant Features – PIC24 MCUs and dsPIC33 DSCs

Dedicated peripherals and functions have been integrated into PIC24 and dsPIC33 devices to help increase the reliability and monitoring for safety-critical applications. These features help ensure that end applications operate as intended, with safe shut down if any exception or issue arises.

Feature

dsPIC33C

dsPIC33E

PIC24F

Fault Prevention

Self Diagnostic

System Diagnostic

Fault Mitigation

CRC Module/Cyclical Redundancy Check (CRC)*





Flash Error Detection and Correction (ECC)





Read/Write Memory Protection







Boot Segment Protection







Dual Partition Program Memory





Illegal Opcode Detect





Load Once Per Reset Config Register







RAM BIST







Self-Readable Flash Memory







Reference Design

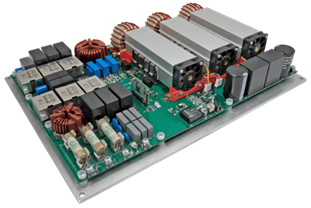

Vienna 3-Phase Power Factor Correction (PFC) Reference Design

The MSCSICPFC/REF5 is a 3-phase Vienna PFC reference design for Hybrid Electric Vehicle/Electric Vehicle (HEV/EV) charger and high-power switch mode power supply applications. This reference design achieves 98.6% efficiency at 30 kW output power.

  • Microchip/Microsemi 700V, 15 mΩ SiC MOSFETs and 1200V, 30A SiC Schottky Barrier Diodes (SBDs)
  • Digitally controlled current and voltage loop using a Microchip dual core dsPIC33CH microcontroller
  • Model for Simulation available (Piecewise-Linear Electrical Circuit Simulation (PLECS))

https://www.microchip.com/design-centers/power-management/silicon-carbide-sic-devices-and-power-modules/reference-designs/vienna-power-corrections-reference-design
