Introducing the dsPIC33CH Dual-Core Family – Newest Killer Product from Microchip

dsPIC33CH

System developers designing high-end embedded control applications with multiple software teams can benefit from a new Digital Signal Controller (DSC) with two dsPIC® cores in a single chip enabling easier software integration. The dsPIC33CH has one core that is a master while the other is a slave. The slave core is for executing dedicated, time-critical control code while the master core is busy running the user interface, system monitoring and communications functions, customized for the end application.

The dsPIC33CH is designed to facilitate independent code development for each core by separate design teams and allows later enables seamless integration when they are brought together in one chip. The dsPIC33CH family is optimized for high-performance digital power, motor control and other applications requiring sophisticated algorithms. This includes applications such as wireless power, server power supplies, drones and automotive sensors.

What’s New:

  • Simplified firmware development with dual independent cores

  • Dual cores and peripheral sets facilitate robust systems and improve functional safety

  • First dsPIC33 with CAN-FD for robust communication with increased bandwidth

  • Maximum analog integration including high-speed ADCs, DACs with waveform generation, analog comparators and PGAs for increased functionality in less space

  • Live Update of firmware for high-availability systems, especially important for power supplies

The dsPIC33CH is supported by Microchip’s MPLAB® development ecosystem including MPLAB X Integrated Development Environment (IDE). Supported by the popular MPLAB Code Configurator (MCC) tool, setting up pin assignments, peripheral modes and application stacks has never been easier and customers can bring their design to market faster than ever before.

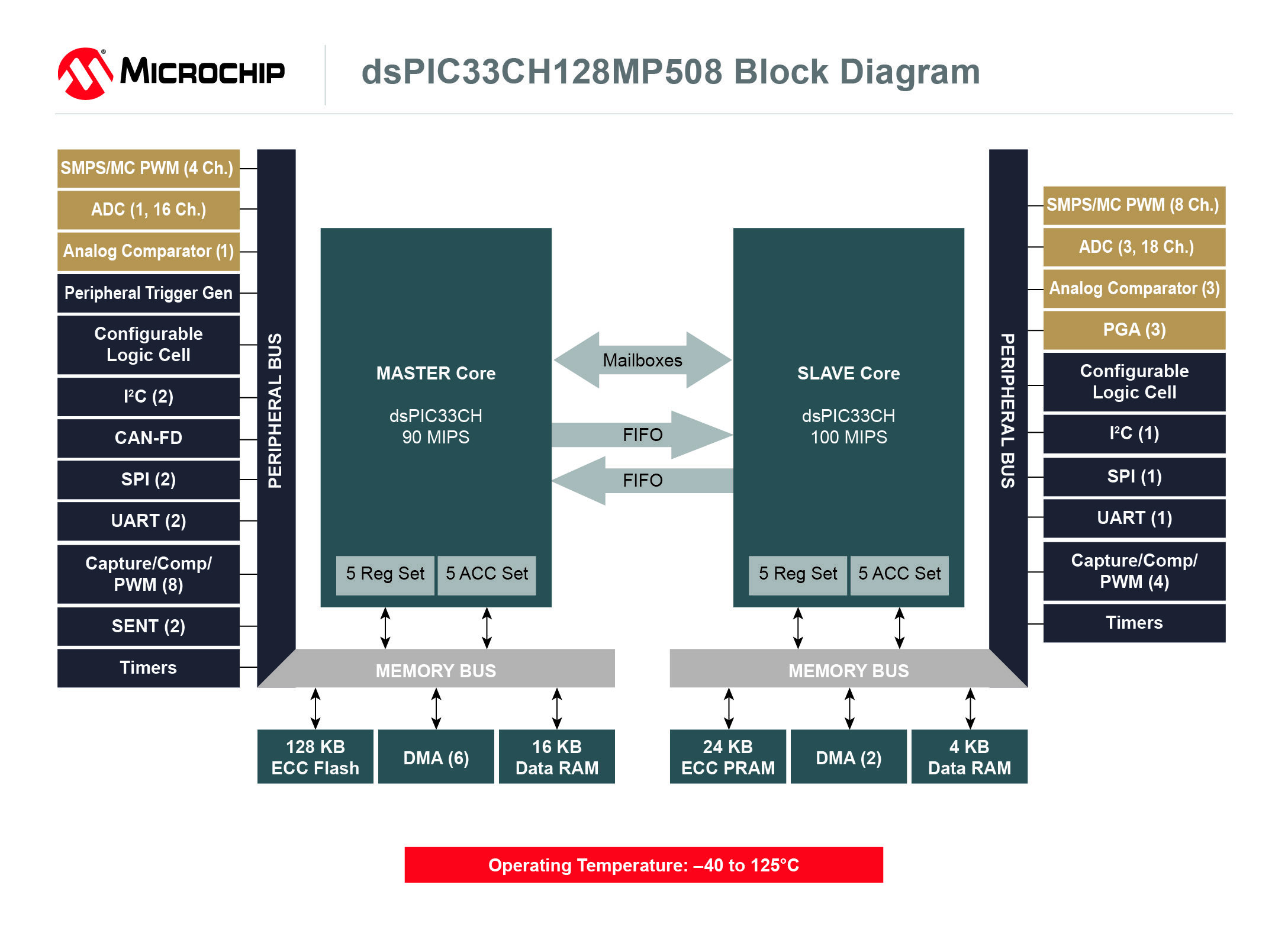

dsPIC33CHBlockdiagramm

Development Tools:

dsPIC33CH Curiosity Development Board

  • Orderable PN: DM330028

  • Includes digital power features and MikroElektronika click board™ interfaces

dsPIC33CH128MP508 Motor Control Plug-In Module (PIM)

  • Orderable PN: MA330039

  • Plugs into Motor Control Development Boards such as dsPICDEM MCLV-2 Development Board (DM330021-2) or the dsPICDEM MCHV-2/3 Development System (DM330023-2/3)

dsPIC33CH128MP508 General Purpose Plug-In Module (PIM)

  • Orderable PN: MA330040

  • Plugs into the Explorer 16/32 Development Board (DM240001-2)


Digital Power

Motor Control

High Performance Embedded

  • Industrial: AC/DC & DC/DC Power Supplies

  • Automotive: Converters, Chargers, Inverters

  • Consumer: Wireless Power

  • Automotive: Pumps, Fans

  • Industrial: Drones, Robotics

  • Consumer: Appliances, Power Tools

  • Automotive: Electronic Sensors

  • Industrial: Automation and Control

  • Medical: Diagnostic Equipment, Monitors

  • IoT: Gateways and Central Processors


dsPIC33CH Family Product Variants:

Package*

Part Number

Flash

80-pin TQFP (12 x 12 mm) – PT

dsPIC33CH128MP508

dsPIC33CH128MP208

dsPIC33CH64MP508

dsPIC33CH64MP208

128 KB64 KB

64-pin QFN (9 x 9 mm) – MR

64-pin TQFP (10 x 10 mm) – PT

dsPIC33CH128MP506

dsPIC33CH128MP206

dsPIC33CH64MP506d

sPIC33CH64MP206

128 KB64 KB

48-pin uQFN (6 x 6 mm) – M4

48-pin TQFP (7 x 7 mm) – PT

dsPIC33CH128MP505

dsPIC33CH128MP205

dsPIC33CH64MP505

dsPIC33CH64MP205

128 KB64 KB

36-pin uQFN (5 x 5 mm) — M5

dsPIC33CH128MP503

dsPIC33CH128MP203

dsPIC33CH64MP503

dsPIC33CH64MP203

128 KB64 KB

28-pin SSOP (10.2 x 5.3 mm) — SS

28-pin uQFN (6 x 6 mm) – 2N

dsPIC33CH128MP502

dsPIC33CH128MP202

dsPIC33CH64MP502

dsPIC33CH64MP202

128 KB64 KB

* Tape & reel options available
